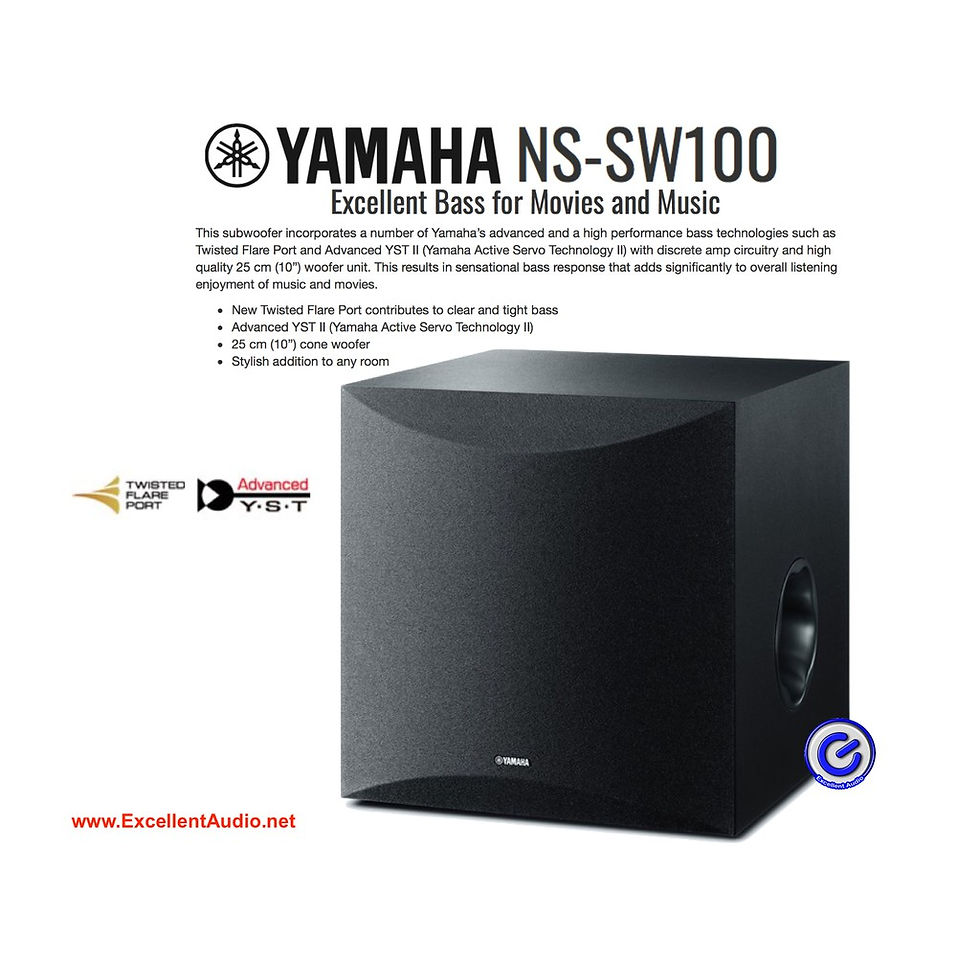

NS-SW100
Driver    25 cm (10”) cone
Dynamic Power    100 W (5 ohms)
Output Power    50 W (100 Hz, 5 ohms, 10% THD)
Frequency Response    25–180 Hz
Advanced YST    Yes
Twisted Flare Port    Yes
Dimensions (W x H x D)    351 x 352 x 408 mm; 13-7/8” x 13-7/8” x 16-1/8”

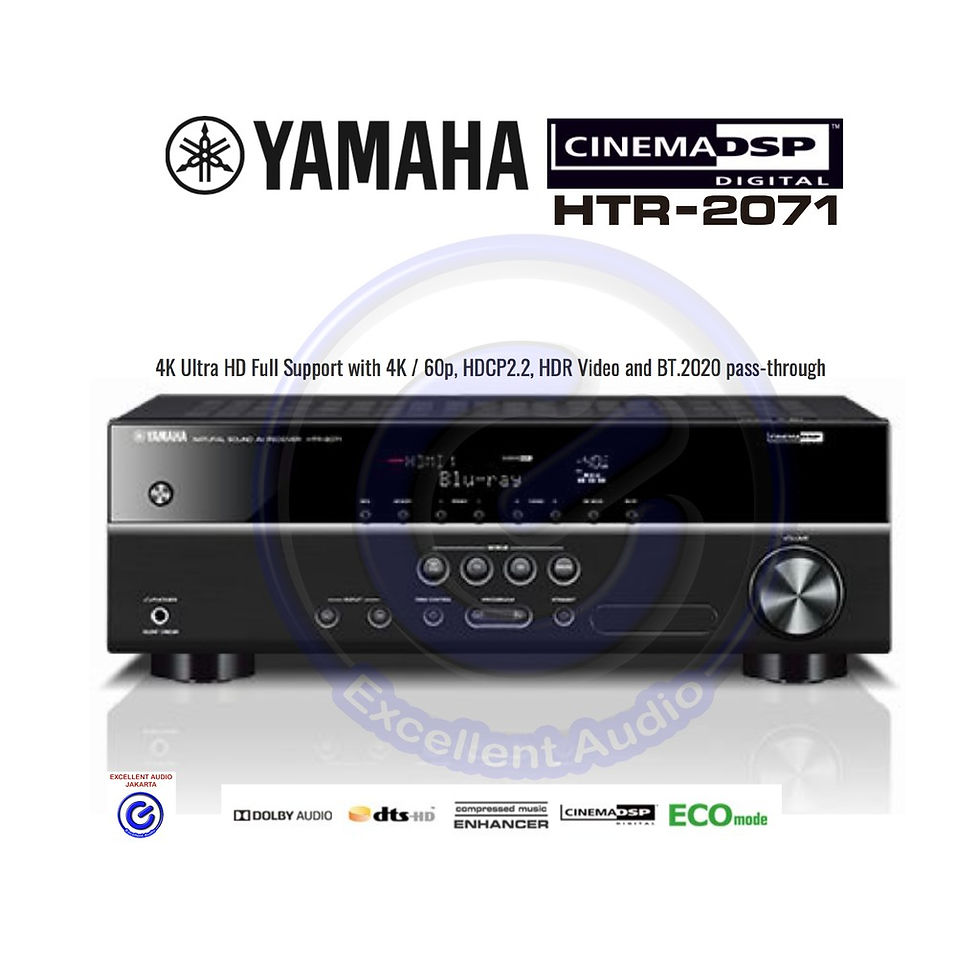

Amplifier Section
Channel
5.1
Rated Output Power (1kHz, 1ch driven)
100 W (6 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven)
70 W (6 ohms, 0.09% THD)
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA)
135 W (6 ohms, 10% THD)
Dynamic Power per Channel (8/6/4/2 ohms)
- / 110 / 130 / 150 W
Surround Sound Processing
SILENT CINEMA / Virtual CINEMA DSP
Yes (Virtual CINEMA FRONT)
Dolby Digital Plus
Yes
Dolby Digital
Yes
Audio Features
Compressed Music Enhancer
Yes
Adaptive DRC (Dynamic Range Control)
Yes
Initial Volume & Maximum Volume Setting
Yes
Audio Delay
Yes (0-500 ms)
192kHz/24-bit DACs for all channels
Yes (Burr-Brown)
Video Features
4K Ultra HD Pass-through and upscaling
Yes (4K / 60p, 4:4:4)
HDMI 3D passthrough
Yes
HDMI Audio Return Channel
Yes
Dimensions (W x H x D)
435 x 151 x 315 mm; 17-1/8 x 6 x 12-3/8
NS-F150
Tipe    2-way bass-reflex floorstanding speaker
Woofer    Dual 16cm (6-1/2”) cone
Tweeter    3cm (1”) soft dome
Respon Frekuensi    37 Hz–30 kHz
Nominal Daya Masuk    50 W
Daya Masuk Maksimum    180 W
Impendansi    6 ohms
Dimensi (W x H x D)    200 x 1,030 x 362 mm; 7-7/8” x 40-1/2” x 14-1/4”
NS-P150
Tipe    2-way acoustic suspension
Center Speaker    Woofer    Dual 8cm (3-1/4”) cone
Tweeter    1.4cm (1/2”) balanced dome
Respon Frekuensi    65 Hz–38 kHz
Nominal Daya Masuk    30 W
Daya Masuk Maksimum    80 W
Impendansi 6 ohms
Dimensi (W x H x D) 395 x 130 x 127 mm; 15-1/2” x 5-1/8” x 5”
Woofer 8cm (3-1/4”) cone
Surround Tweeter 1.4cm (1/2”) balanced dome
Respon Frekuensi 60 Hz–38 kHz
Nominal Daya Masuk 20 W
Daya Masuk Maksimum 60 W
Impendansi 6 ohms
Dimensi (W x H x D) 130 x 225 x 127 mm; 5-1/8” x 8-7/8” x 5”
