SR-5013
DTS HD Master / DTS:X / DTS Neural:X
DTS Virtual:X
Dolby TrueHD / Dolby Atmos / Dolby Surround
Multichannel stereo
Max number of processing (Preamp) channels : 7.1
Audyssey : Multi EQXT
Audyssey Dynamic EQ / Dynamic Volume
Compressed audio enhancer: MDAX2
Number of poweramps : 7
Number of speaker terminals : 7
Power output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch drive) : 100W
Power output (6 ohm, 1 kHz, 10% 1ch drive) : 200W

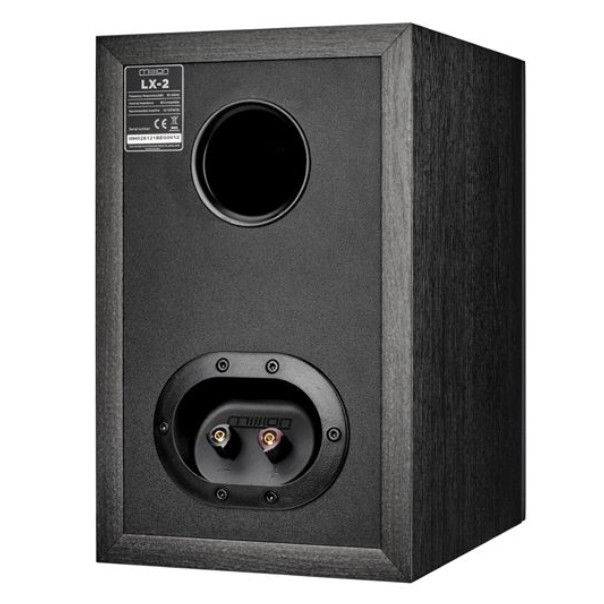

LX-2
General description Bookshelf
Enclosure type Ported
Transducer complement 2-way
Midrange driver
Bass driver 130mm advanced fibre
Treble driver 25mm microfibre dome
AV magnetically shielded No
Sensitivity (1W @ 1m) 86.5db
Recommended amplifier power 20-100w
Nominal impedance 6 Ohms
Minimum impedance 4.4 Ohms
Frequency response (+/-3dB) 60-30kHz
Crossover frequency 2.8kHz
Dimensions (mm)
Height (on plinth & spikes) 305mm
Width 191mm
Depth (with grille) 250+10mm
