AVR-VX550bt
Number of power amps
5
130 watts per channel
(6 ohms, 1 kHz, THD 1%, 1ch driven)
FM section
 Tuning frequency range
87.5 - 108 MHz
 Power output
AM section
 Tuning frequency range
522 kHz – 1611 kHz
 90 watts per channel
(6 ohms, 1 kHz, THD 0.7%, 2ch driven)
General
 Power supply
AC 230 V, 50/60 Hz
 70 watts per channel (8 ohms,
20 Hz - 20 kHz, THD 0.08%, 2ch driven)
Power consumption
310 W
(Standby 0.1 W, CEC standby 0.5 W)
 Speaker impedance
6 – 16 Ω/ohms
Power consumption No-Sound
26 W (ECO Mode On) 35 W (ECO Mode Off)
 Preamplifier section
 Input sensitivity/ impedance
200 mv / 47kΩ/kohms
Dimensions (W x H x D)
434 x 151 x 319 mm
 Weight
7,5 kg
 Frequency response
10 Hz - 100 kHz — +1, –3 dB (Direct mode)
EU EAN
AVRX550BTBKE2
4951035065112
Black
 EU / UK EAN
AVRX550BTBKE2GB
4951035066386
Black
 S/N Ratio
98 dB (IHF-A weighted, Direct mode)
LX-1
• Bass reflex enclosure
• 2-way speakers
• 100mm advanced fibre bass driver
• 25mm microfibre dome tweeter
• 86.5dB sensitivity (1w @ 1m)
• 20-80W recommended amp power
• 6 Ohms nominal impedance
• 4.1 Ohms minimum impedance
• 65Hz-20kHz frequency response
• 2.2kHz crossover frequency
• 260 x 160 x 235mm
LX-C
Sealed box enclosure
2-way speaker
2 x 100mm advanced fibre bass driver
25mm microfibre dome tweeter
87.5db sensitivity (1w @ 1m)
20-100w recommended amp power
100w peak power output
6 Ohms nominal impedance
5 Ohms minimum impedance
80Hz - 30kHz frequency response
2.1KHz crossover frequency
160 x 400 x 210mm

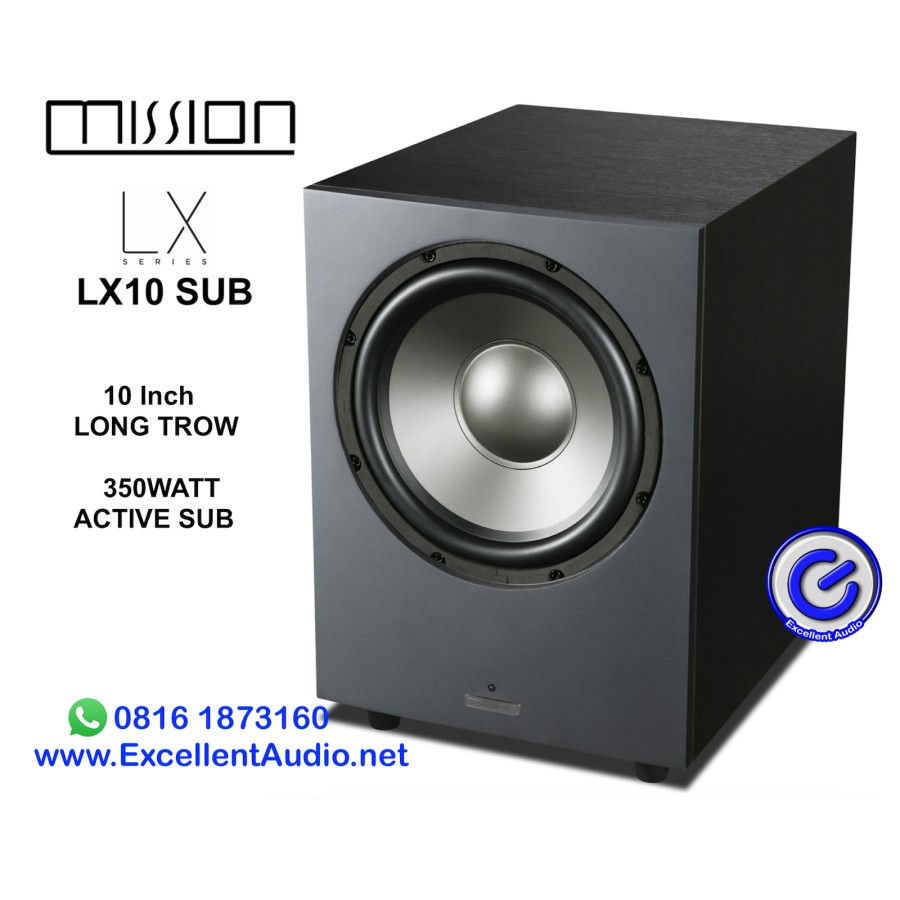

LX10 SUB
1 x (10") 250 mm PP cone long-throw
Frequency Response
40- 120 Hz ±3 dB
Amplifier Power Output  200W
Peak Power Output
350 W
Line Input Sensitivity
200 mV for maximum output
Crossover Range
30 - 150 Hz
Inputs
Stereo line in (2 x RCA phono)Avg. Max Output @1m
118 dB
Features
Phase inversion, auto on-off
Dimensions
Height: (412+35) mm (with feet)
Width: 312 mm
Depth: (392+15) mm
Mono (LFE) line in (RCA phono)
