RMA-330A
Maximum output
FRONT…………………………………300W+300W
CENTER………………………………..300W
Total harmonic distortion
1KHz, 8 ohms, 50W………………….0.03%
Input sensitivity/impedance
MIC………………………………………6mV/3.3K Ω
DVD, TAPE, AUX………………………300mV/47K
BGM……………………………………..300mV/47K Ω
Output level/impedance
PRE OUT……………………………….2.2V/2.2K Ω
SUB OUT……………………………….2.2V/2.2K Ω
REC OUT……………………………….300mV/2.2K Ω
MUSIC OUT…………………………….2.2V/2.2K Ω
Frequency response
Mic……………………………………….20~20KHz, 3dB
Music…………………………………….20~20KHz, 3dB
Key control range
Music…………………………………….11 steps, 5 tones
Video output jack
Sensitivity/impedance…………………1Vp-p/75 Ω
Power Supply Others
Supply voltage………………………….230v~50Hz
Power consumption……………………760W
Dimension(WxHxD)…………………….420 x 138 x 430 mm

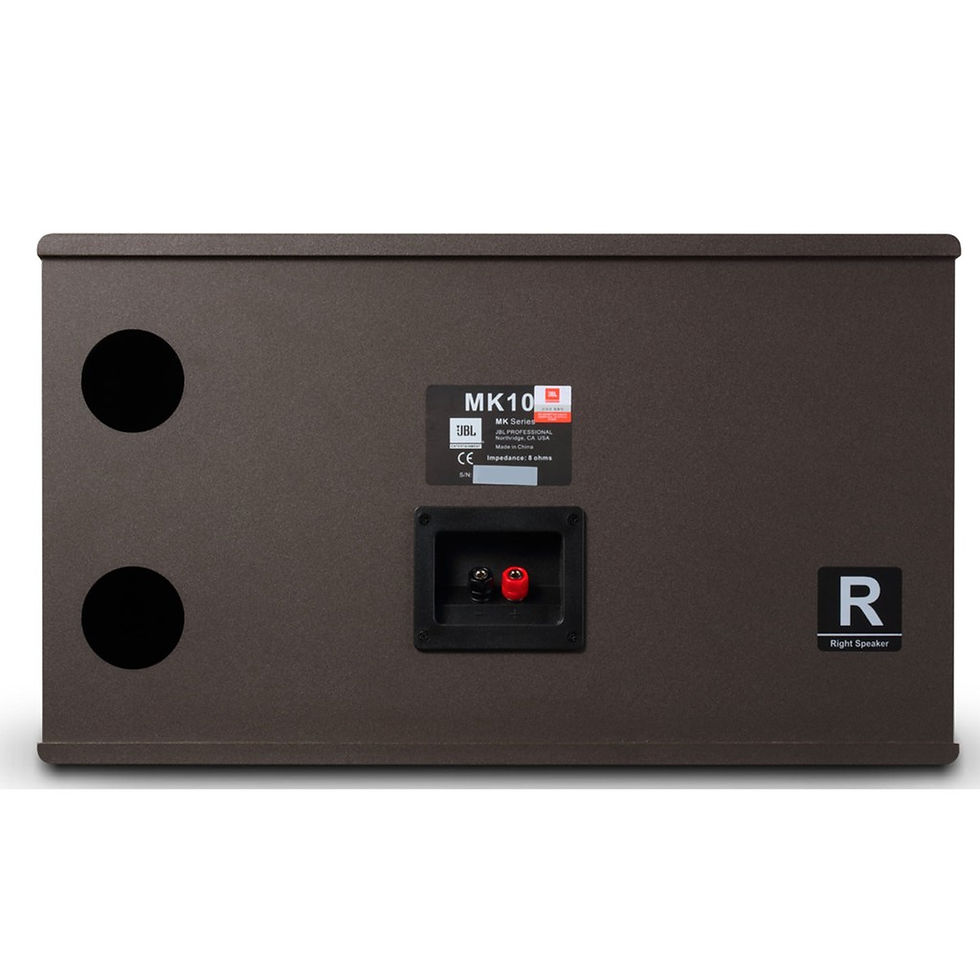

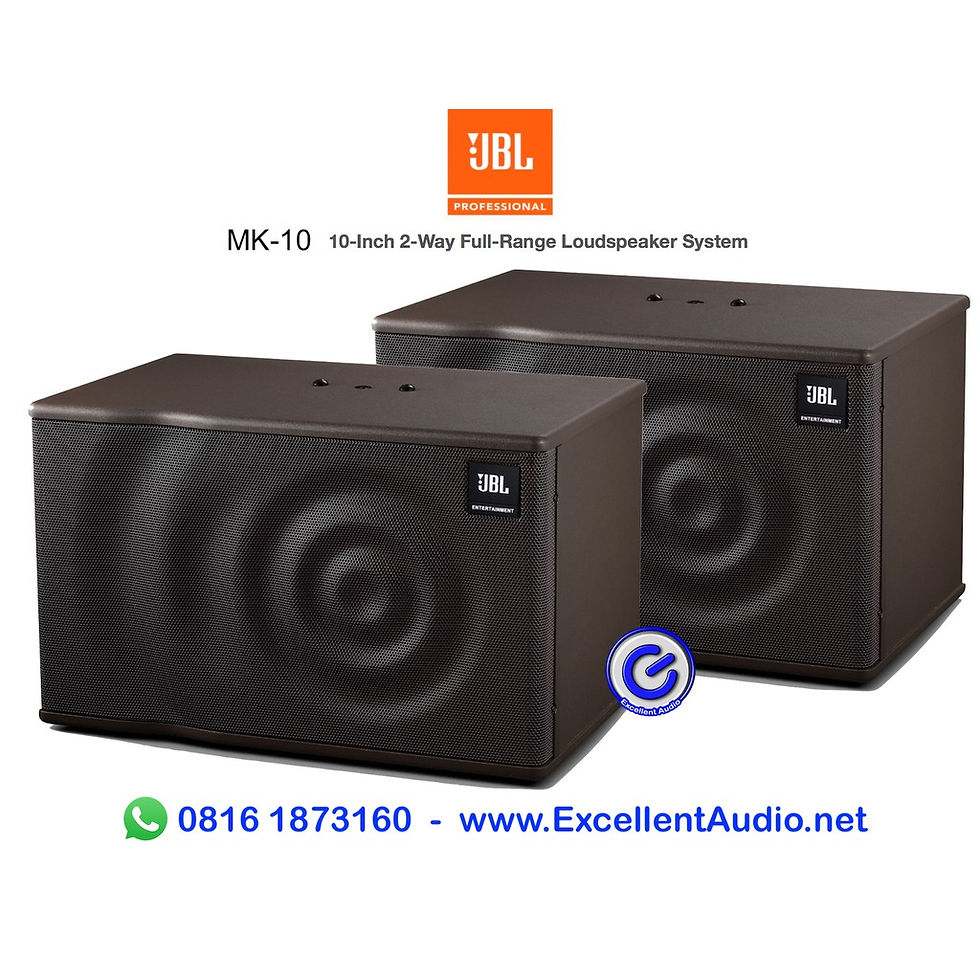

MK-10
• 10-Inch 2-Way Full-Range Loudspeaker System
• SYSTEM TYPE
• 10″, 2-way, bass-reflex
• FREQUENCY RANGE (-10 DB)
• 48 Hz - 17 kHz
• FREQUENCY RESPONSE (±3 DB)
• 64 Hz - 14 kHz
