RMA-330
Frequency Response(-3dB)    MIC 20/20kHz,�3dB MUSIC 20/20kHz,�3dB
Maximum Output    200W+200W (RMA220)/ 250W+250W (RMA330)
Input sensitivity    MIC 6mV / 3.3KΩ DVD, TAPE, AUX 300mV / 47KΩ BGM 300mV / 47KΩ
Output level Impedance    PRE OUT 2.2V / 2.2KΩ SUB OUT 2.2V / 2.2KΩ REC OUT 300mV / 2.2KΩ MUSIC OUT 2.2V / 2.2KΩ
Key control range    Music 11 steps, � 5 tones
Video input jack    Level/Impedance 1Vp-p/75ohm
Power Supplay Others    Supply voltage 220V/240V 50/60Hz
Power consumption    650W (RMA220)/ 700W (RMA330)
Dimensions (HxWxD)    420 x 138 x 430 (RMA220-RMA330)

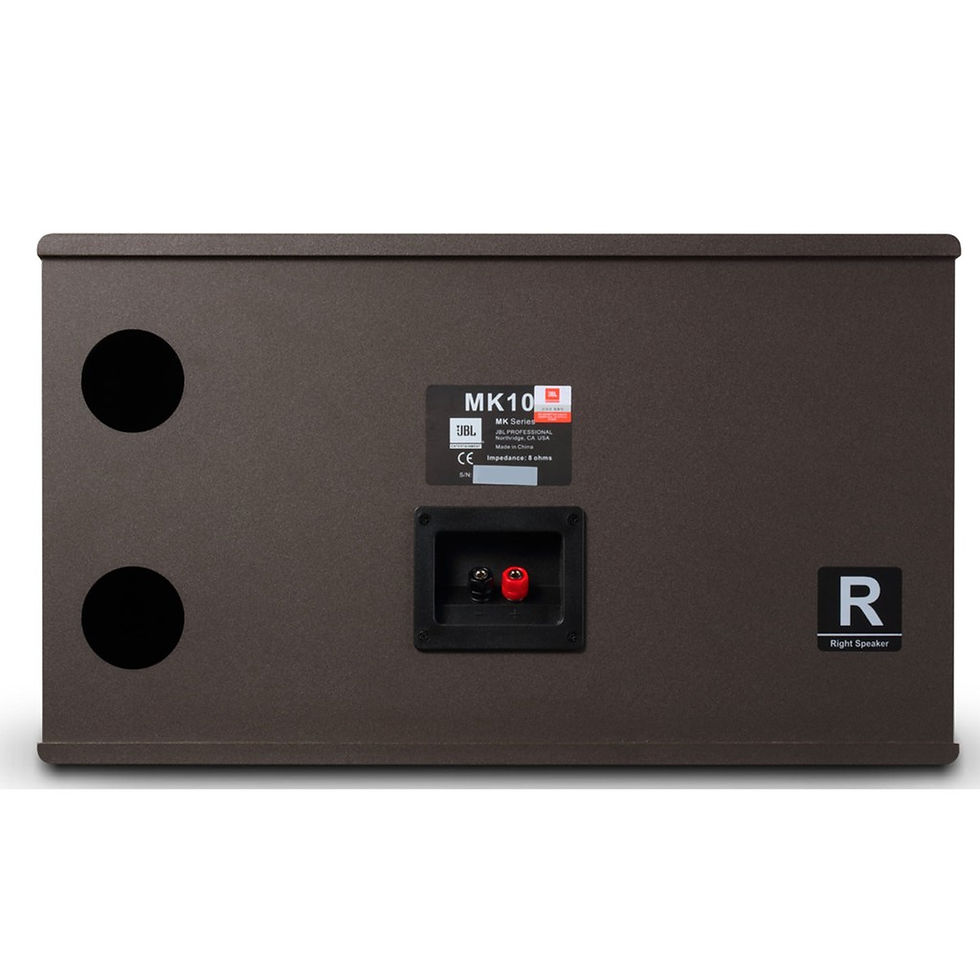

MK-10
System Type    10″, 2-way, bass-reflex
Frequency Range (-10 dB)    48 Hz - 17 kHz
Frequency Response (±3 dB)    64 Hz - 14 kHz
Sensitivity (1w@1m)    90 dB
标称阻抗    8 Ohms
Maximum SPL    113 dB (119 dB peak)
Power Rating(Continuous/Program/Peak)    200 W/400 W/800 W
覆盖范围    110° × 100° (H × V)
Dimensions (H × W × D)    290 mm × 505 mm × 320 mm11.4 inch × 19.9 inch × 12.6 inch
低频驱动单元    1 × 10″ (254 mm) woofer
HF 驱动程序    2 × 3″ (76.2 mm) tweeter
输入连接器    Binding Post
ENCLOSURE CONSTRUCTION    Vinyl covered 12mm MDF
