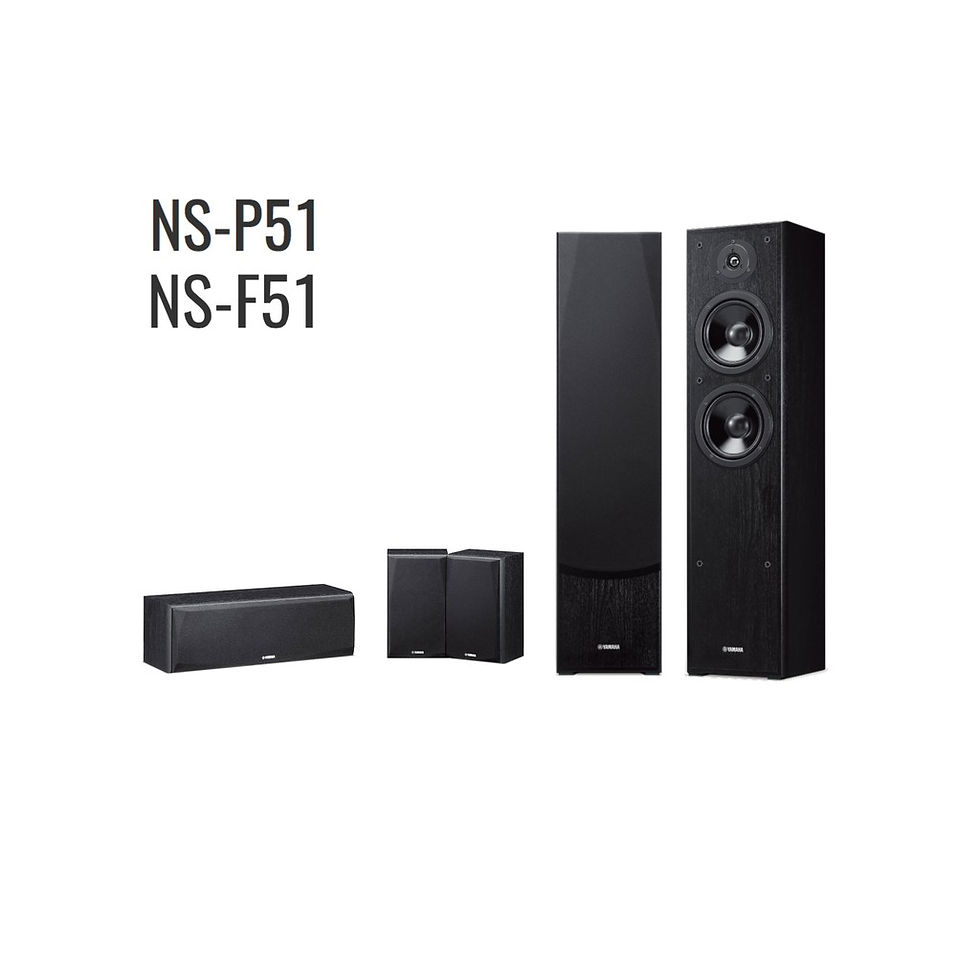

NS-P51
Tipe    2-way acoustic suspension
Center Speaker    Woofer    Dual 10cm (4”) cone
Tweeter    2.2cm (7/8”) balanced dome
Respon Frekuensi    70 Hz–36 kHz
Nominal Daya Masuk    60 W
Daya Masuk Maksimum    180 W
Impendansi    6 ohms
Dimensi (W x H x D)    415 x 135 x 167 mm; 16-3/8” x 5-3/8” x 6-5/8”
Surround Speaker    Woofer    10cm (4”) cone
Tweeter    2.2cm (7/8”) balanced dome
Respon Frekuensi    69 Hz–36 kHz
Nominal Daya Masuk    50 W
Daya Masuk Maksimum    150 W
Impendansi    6 ohms
Dimensi (W x H x D)    148 x 252 x 150 mm; 5-7/8” x 9-7/8” x 5-7/8”
NS-F51
Tipe    2-way bass-reflex floorstanding speaker
Woofer    Dual 16cm (6-1/2”) cone
Tweeter    3cm (1”) soft dome
Respon Frekuensi    43 Hz–26 kHz
Nominal Daya Masuk    80 W
Daya Masuk Maksimum    240 W
Impendansi    6 ohms
Dimensi (W x H x D)    233 x 973.5 x 254 mm; 9-1/8” x 38-3/8” x 10”

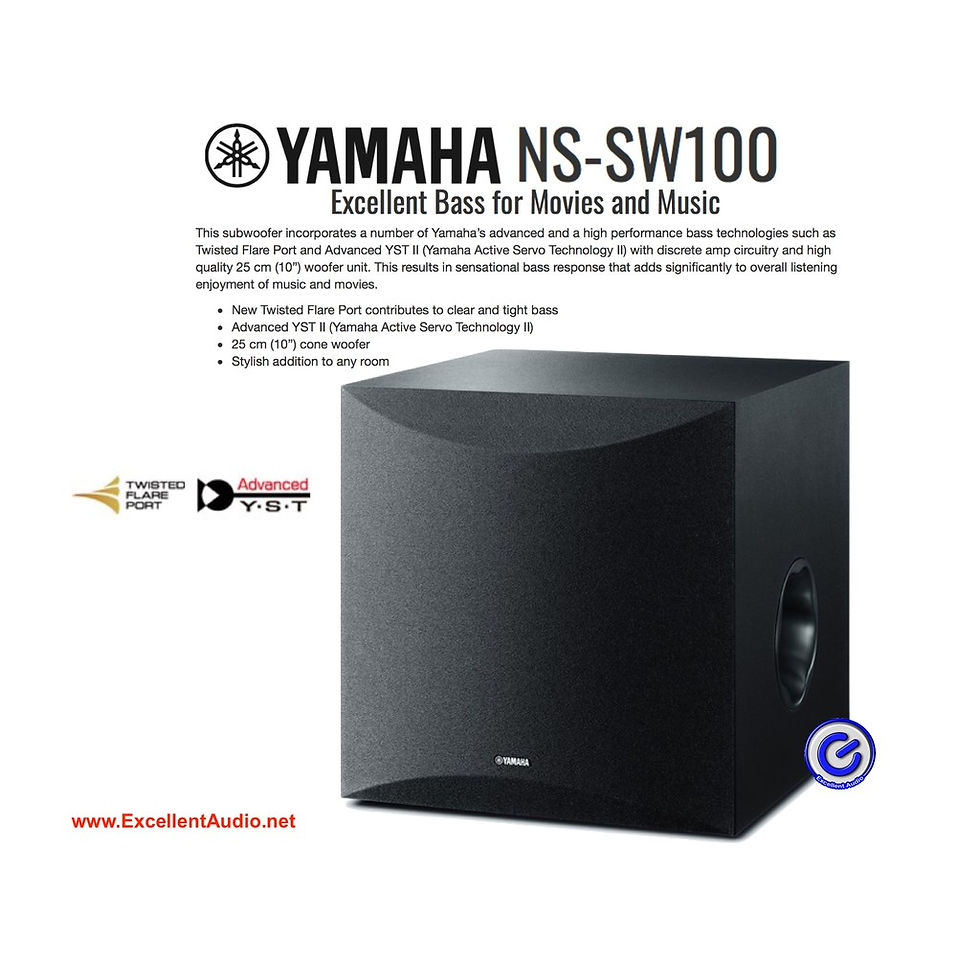

NS-SW100
Driver    25 cm (10”) cone
Dynamic Power    100 W (5 ohms)
Output Power    50 W (100 Hz, 5 ohms, 10% THD)
Frequency Response    25–180 Hz
Advanced YST    Yes
Twisted Flare Port    Yes
Dimensions (W x H x D)    351 x 352 x 408 mm; 13-7/8” x 13-7/8” x 16-1/8”
Amplifier Section
Channel
5.1
Rated Output Power (1kHz, 1ch driven)
100 W (6 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven)
70 W (6 ohms, 0.09% THD)
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA)
135 W (6 ohms, 10% THD)
Dynamic Power per Channel (8/6/4/2 ohms)
- / 110 / 130 / 150 W
Surround Sound Processing
CINEMA DSP
Yes
DSP Programs
17
Dialog Level Adjustment
Yes
SILENT CINEMA / Virtual CINEMA DSP
Yes (Virtual CINEMA FRONT)
Dolby Digital Plus
Yes
Dolby Digital
Yes
Audio Features
Compressed Music Enhancer
Yes
Adaptive DRC (Dynamic Range Control)
Yes
Initial Volume & Maximum Volume Setting
Yes
Audio Delay
Yes (0-500 ms)
192kHz/24-bit DACs for all channels
Yes (Burr-Brown)
Video Features
4K Ultra HD Pass-through and upscaling
Yes (4K / 60p, 4:4:4)
HDMI 3D passthrough
Yes
HDMI Audio Return Channel
Yes
Dimensions (W x H x D)
435 x 151 x 315 mm; 17-1/8 x 6 x 12-3/8
