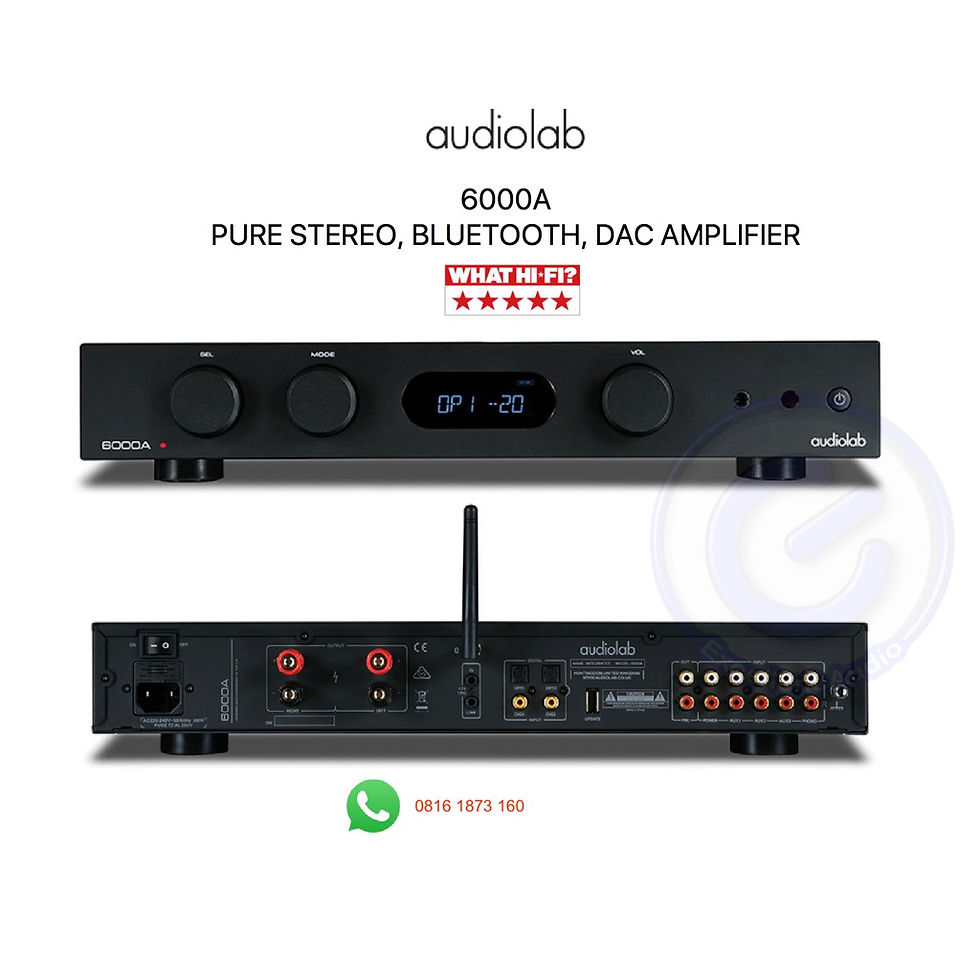

6000A
DAC
D to A converter ES9018K2M
Total Harmonic Distortion (THD) < 0.0006% (1kHz @ 0dBFS)
Output level (0dBFS, 1KHz) 2.05V
Max. Sampling Frequency 192kHz
Signal-to-noise ratio (S/N) > 112dB (A-weighted)
Digital Filters Fast Roll-off , Slow Roll-off , Minimum Phase

Power Amplifier Section
Gain +29dB
Rated Max. Power Output 2 X 50W (8Ω, THD<1%)
2 X 75W (4Ω, THD<1%)
Frequency Response 20Hz-20kHz (+/-0.3dB)

Headphone Amplifier
Total Harmonic Distortion (THD) < 0.01% (1kHz, 50mW)
Output Impedance 2.35Ω
Load impedance 20-600Ω

Dimensions (mm) (W x H x D) 445 x 65.5 x 300

6000CDT
The 6000CDT is a dedicated CD transport incorporating the same slot-loading mechanism as Audiolabs flagship CD player the 8300CD. Extremely robust and reliable it uses a read-ahead digital buffer to reduce disc-reading failures able to play scratched and damaged CDs that are unreadable by conventional mechanisms. What's in the Box: 6000CDT CD Transport Manual Specifications Digital output voltage level: 600 50mVpp Frequency response: 0.01dB @ 20-20kHz Output impedance: 751 ohms Maximum sampling rate: 44.1kHz Maximum power consumption: 15W Standby power consumption: 0.5W Power requirements240V ~ 50 - 60Hz 230V ~ 50 - 60Hz 115V ~ 50 - 60Hz 100V ~ 50 -

LX-2
• Bookshelf / standmount
• Bass reflex enclosure
• 2-way speakers
• 13omm advanced fibre bass driver
• 25mm microfibre dome tweeter
• 86.5dB sensitivity (1w @ 1m)
• 20-100W recommended amp power
• 6 Ohms nominal impedance
• 4.4 Ohms minimum impedance
• 60Hz-30kHz frequency response
• 2.8kHz crossover frequency
• 305 x 191 x 260mm
